HEADLAMP PARTS & HARDWARE |
|||
| Part Number | Description | Price |

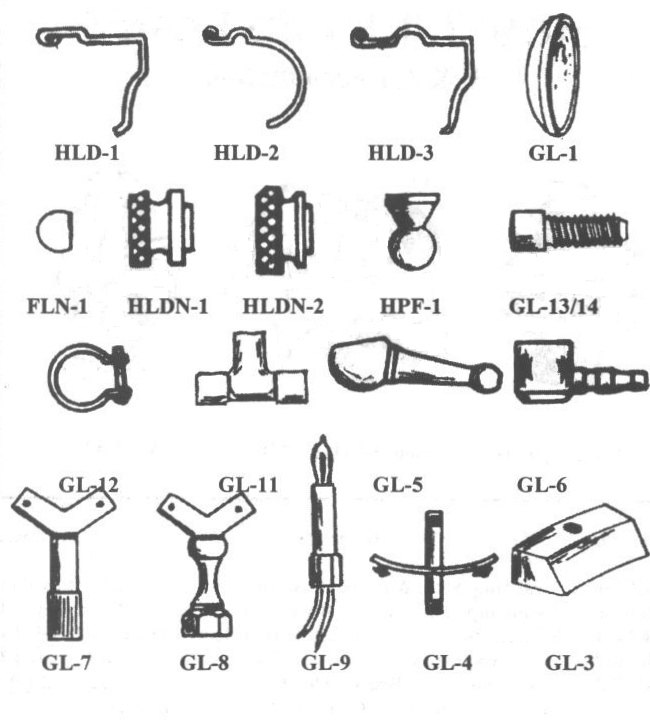

 -CLICK TO ENLARGE- |
| GL-1 | Headlamp Mirror, 6 1/8 Inches | 45.00 | |
| GL-2 | Asbestos Pad (For Mirror) | N/A | |
| GL-3 | Mirror Wedge | 7.00 | |
| GL-4 | Burner Base | 22.00 | |
| GL-5 | Universal Elbow | 24.00 | |
| GL-6 | E & J Elbow | 24.00 | |
| GL-7 | Standard Burner | 27.00 | |
| GL-8 | Alco Deluxe Burner | 38.00 | |
| GL-9 | Quartz-Halogen Headlamp Burner With Stainless Steel Base, 12V @ 5A Or 6V @ 2.5A | 48.00 | |
| GL-10 | Red Rubber Hose (Price Per Foot) | 6.50 | |
| GL-11 | Copper T Fitting (For Hose) | 4.00 | |
| GL-12 | Brass Hose Clamp | 4.00 | |
| GL-13 |
Set Screw, Square Head, 5/16 X 3/4-18 Jon Brown, Victor & Corcoran |
0.50 | |
| GL-14 | Set Screw, Square Head, 3/8 X 3/4-16, E & J | 0.50 | |
| GL-15 | E&J Carbide Generator Mounting Base | 75.00 | |
| HLD-1 | Head Lamp Door, E&J #656 & 666, 8-1/16 In. I.D. | 50.00 | |
| HLD-2 |
Head Lamp Door, Jon Brown #16 & #19,
8-31/32 In I.D. |
50.00 | |
| HLD-3 |
Head Lamp Door, Victor #2 & Corcoran,
8-13-16 In. I.D. |
50.00 | |
| HLDN-1 | Thumb Nut For E&J Door, 1/4-20 | 10.00 | |
| HLDN-2 |
Thumb Nut For Brown, Victor & Corcoran,
12-24 |
10.00 | |
| FLN-1 | Finale Lock Nut For HLDN-1, 12-24, Large | 4.00 | |
| FLN-2 | Finale Lock Nut For Side & Tail Lamps, 12-24, Small | 4.00 | |
| HPF-1 | Hinge Pin Final, 8-32 | 4.00 | |
|
SIDE & TAIL LAMP PARTS |
|||
| SLB-1 | Burner, E&J Side & Tail Lamp (09-14) | 70.00 | |
| SLB-2 | Burner, Jon Brown Slide & Tail Lamp (09-14) | 70.00 | |
| SLF-1 | Fount, E&J | 42.00 | |
| SLF-2 | Fount, Jon Brown #100, 105, 110, 115 & Corcoran | 42.00 | |
| SLF-3 | Fount, Victor | 42.00 | |
| SLT-1 | Chimney Top, E&J Side Lamp, Pat 1908 | 44.00 | |
| SLT-2 | Chimney Top, Jon Brown #110 Side Lamps | 44.00 | |
| TLT-1 | Chimney Top, E&J Tail Lamp, Pat 1908 | 44.00 | |
| TLT-2 | Chimney Top, Jon Brown #115, Tail Lamp | 44.00 | |
| 6599X | E&J Side & Tail Lamp Fount (15-27) | N/A | |
| 6958X | E&J #8 Side Lamp Top, Brass (1915) | 50.00 | |
| 6959X | E&J #9 Tail Lamp Top, Brass (1915) | 50.00 | |
| 6956/57X | E&J Side & Tail Lamp Door, Brass | 75.00 | |
